Product ID: | SD-001-001 |

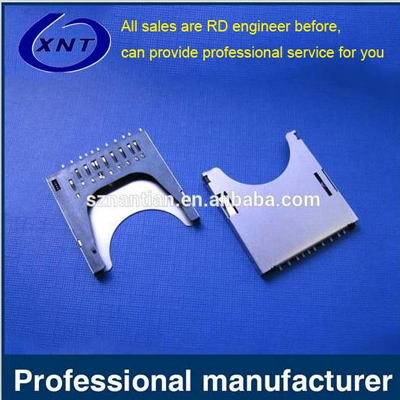

product name: | SD PUSH 2.75mm high solder fillet detection |
specification: | Plastic: Black high temperature UL94V-0; Terminal: Copper alloy housing: Stainless steel |
Product Note: | Push push type with CD terminal, SMT type L28.80*W28.45*H2.75 |
Product Category: | microSD TF SD Series |
Specifications:
1. Rated current: 0.5mA AC/DC
2. Rated voltage: 125V AC/DC
3. Operating temperature: -25°C ~ +60°C
4. Storage temperature: -40°C ~ +70°C
5. Contact resistance: 100m ohms max.
6. Insulation resistance: 1000M ohms min./500VDC
7. Durability: 10000 times
8. Product temperature resistance: 260±5°C 10S
9. RoHS compliant
Note:
1. This connector is widely used in mobile phones and flat panels. Computers, navigators, LCD TVs, etc.;
2. Inspection process for secondary products: IQC feed inspection -> storage -> pre-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the goods Inspection
3. This product production process is: pre-line inspection -> group terminal -> assembly slider, tie rod, spring -> assembled shell -> push inspection -> electrical inspection -> flatness test - -> Appearance Inspection -> FQC Inspection -> Storage
