Product ID: | XNT-AP4xx-xx |

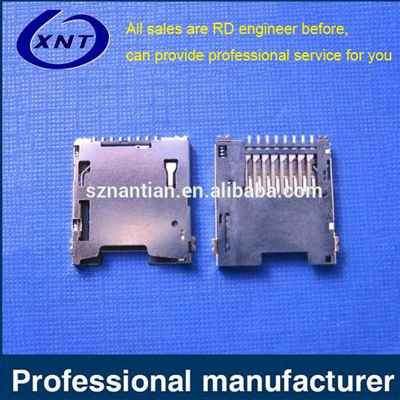

product name: | TF/microSD push type with detection (normally open) (H=1.50mm) |
specification: | Plastic: Black high temperature UL94V-0; Terminal: Copper alloy |
Product Note: | Push type with CD terminal (normally open) L15.00*W15.70*H1.50 (with positioning column |
Product Category: | microSD TF SD Series |
Technical parameters:
1. Rated current: 0.5mA AC/DC
2. Rated voltage: 100V AC/DC
3. Operating temperature: -25°C ~ +85°C
4. Storage temperature: -40°C ~ +85°C
5. Contact resistance : 100m ohms max.
6. Insulation resistance: 1000M ohms min./500VDC
7. Durability times: 5000 times
8. Product temperature resistance: 260±5°C 10S
Product Description:
1. This connector is widely used in mobile phones, tablet computers, Navigators, LCD TVs, automobiles, smart wearable devices, aeronautics, etc.;
2. Inspection process for secondary products: IQC feed inspection--> storage--> self-test before going on-->IPQC inspection-->FQC end Inspection -> OQC cargo inspection
3. This product production process is: pre-line inspection -> automatic machine cutting adhesive tape -> automatic machine assembly CD terminal -> assembly slider, hook, spring -> Assembly of the shell -> Push test -> Electrical test -> Flatness test -> Appearance test -> FQC test -> Storage
