Product ID: | XNT-E6836 |

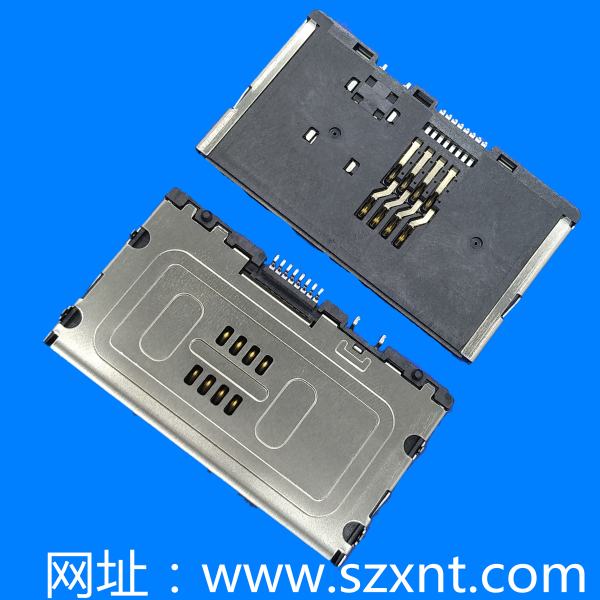

product name: | Smart card drawing 8pin IC card with detection terminal without harpoon |
specification: | Plastic: black high temperature UL94V-0; terminal: copper alloy; |
Product Note: | Push-pull with CD terminal, SMT type |
Product Category: | Smart card series |
Technical parameters:
1. Rated current: 1.0A max
2. Rated voltage: 50V AC/DC
3. Operating temperature: -40°C ~ +85°C
4. Storage temperature: -40°C ~ +85°C
5. Contact resistance: 100m ohms max.
6. Withstand voltage: 500V AC / 1 minute
7. Insulation resistance: 1000M ohms min./500VDC
8. Durability times: 50000 times
9. Product temperature resistance: 260±5°C 10S
10. Flatness: 0.10mm MAX.
11. RoHS compliant
12. Stable and superior performance
Product Description:
1. This connector is widely used in POS machines, set-top boxes, tablet computers, navigators, LCD TVs, automobiles, aviation, smart wearable devices, etc.;
2. This product Inspection process is: IQC feed inspection -> into the warehouse -> before the on-line self-test -> IPQC inspection -> FQC final inspection -> OQC out of the cargo inspection
3. This product production process is: on-line inspection - ->Assembled terminal-->Electrical inspection-->Flatness test-->Positive test-->Appearance test-->FQC test-->Imported
