Product ID: | XNT-FUCR-247K-09BR |

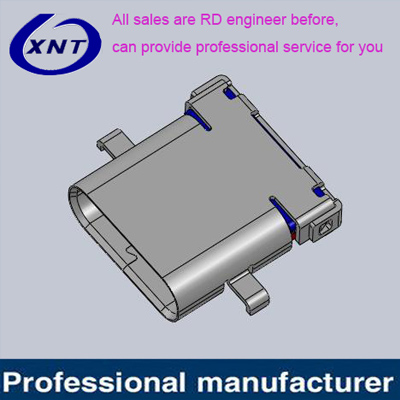

product name: | USB TYPE C 3.1 Female Chassis DIP Terminal DIP+SMT |
specification: | Plastic: High temperature UL94V-0, black; Terminal: Copper alloy housing: Stainless steel |
Product Note: | Tape packaging bandwidth 24mm, |
Product Category: | USB Series SATA Series |
Technical parameters:
1. Rated current: 5.0A for Vbus, 0.25 for others
2. Operating temperature: -25°C ~ +85°C
3. Storage temperature: -25°C ~ +85°C
4. Contact resistance: 40m ohms max.
5 Insulation resistance: 100M ohms min./500VDC
6. Withstand voltage: 100V AC for 1 minute
7. Durability times: 10000 times
8. Product temperature resistance: 260±5°C 10S
9. RoHS Compliant
Product Description:
1. This connector is widely used. Applied to mobile phones, tablet PCs, navigators, LCD TVs, etc.;
2. This product inspection process is: IQC feed inspection -> storage -> pre-line self-test -> IPQC inspection -> FQC final inspection - ->OQC cargo inspection
3. This product production process is: pre-line inspection -> automatic machine cutting -> assembled shell -> riveting shell -> electrical inspection -> pressure test -> Flatness test -> Positive test -> Appearance test -> FQC test -> Check in
