Product ID: | XNT-POGO-xxxxxx |

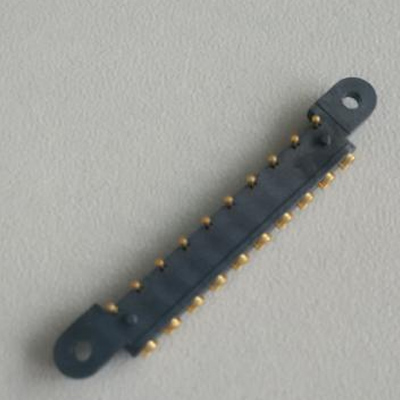

product name: | POGO pin female pitch 2.50mm 10Pin |
specification: | Plastic: Black high temperature UL94V-0; Terminal: GF |
Product Note: | POGO pin DIP type L34.50*W5.70*H4.20 |
Product Category: | Pin Header POGO Pin Series |
| Technical parameters: 1. Rated current: 1A 2. Rated voltage: 12V 3. Contact resistance: 30m ohms max. 4. Withstand voltage: 500V AC 5. Insulation resistance: 100M ohms min. 6. Product temperature: 220±5°C 10S 7. RoHS Compliant 8. Operating Temperature: -20°C ~60°C 9. Durability: 20000 Product Description: 1. This connector is widely used in computers, flatbeds, copiers, printers, etc.; 2. The inspection process for this product is: IQC Feed Inspection-->Importing-->Pre-line self-test-->IPQC inspection-->FQC final inspection-->OQC cargo inspection 3. This product production process is: pre-online inspection-->automatic assembly Terminals-->DIP Inspection-->Appearance Inspection-->FQC Inspection-->Storage |
